Introduction of Komatsu Dump Truck Model HD785-7

. Friday, March 13, 2009





        Siapa yang tidak mengenal Komatsu HD785,salah satu produk unggulan Komatsu yang di pasarkan oleh PT.United Tractors Tbk di areal mining seluruh Indonesia.Sejak pertama kali dipasarkan di Indonesia HD785-3 hingga sekarang HD785-7,produk ini laris manis bak kacang goreng,Mulai dari pemilik tambang besar seperti KPC , BHP Arutmin dan Kideco Jaya Agung hingga mining contractors seperti PAMA,Thiess,Petrosea,Darma Henwa ,SMJ,BIP,SIS,Madhani dan lainnya pernah memiliki dan masih menggunakan unit model ini hingga sekarang.



HD785-7



        Bila dibandingkan dengan competitor-nya yang sekelas semisal CAT 777 B/C/D ,Terex 33100 ,Euclid R90 atau sedikit diatasnya Hitachi EH1700 ,unit ini masih bisa “ Bersaing “,mulai dari segi kenyamanan pengoperasian maupun dilihat dari segi performance-nya.Di beberapa lokasi tambang, unit ini mendapat sebutan “ Sedan-nya Tambang “ hal ini dikarenakan ayunan suspensi-nya yang terasa “ empuk “ bila melewati jalan yang berlubang,karena sejak product dash 3 hingga dash 7 sekarang, HD785 ini sudah mengaplikasikan suspensi tipe Mac Pherson Link Strut ( A-Frame ) yang notabene banyak dipasang di mobil sedan kelas mewah,sehingga banyak operator yang senang jika disuruh untuk mengoperasikan unit ini.Bahkan saking terkenalnya beberapa truck competitor-pun juga disebut dengan HD He..he..he…( Bukannya OHT ).



        Belum lagi perpindahan gigi-nya yang terasa halus banget saat melakukan Gear Shifting,karena unit ini juga mengaplikasikan Advanced K-ATOMiCS ( Advanced Komatsu-Advanced Transmission with Optimum Modulation Control ) pada transimi-nya. Oke deh,daripada saya kebanyakan menulis,mending kita berkenalan dengan salah satu produk terbaru Komatsu,yaitu HD785-7.Mari kita pelajari bersama-sama….


1. Introduction
        Since its market introduction in 1997, the 90t rigid dump truck model HD785-5 has been highly acclaimed by users for its comfortability, retarder brake performance and other parameters. Nevertheless, nine years have passed after its market entry and its product power has required a revamp in view of the market changes and the quality improvement of
competing machines.
        Furthermore, compliance with social regulations, such as the EPA Tier2 emission regulation that has been enforced on this class of machines since 2006, has been demanded.
        With this in mind, the HD785-7 dump truck, which simultaneously combines excellent productivity and fuel economy, has been developed as described below.



 2.  Aims of Development
        Aiming to  maintain the product superiority of existing machines, the further upgrading of productivity, fuel economy, safety and comfortability, as well as compliance with environmental conditions and regulations, were targeted. The development aims were set as described in Table 1.



Development aims



3. Principal Features


3.1 Enhanced productivity
1)  Larger engine output
Installed with a KOMATSU SAA12V140E-3 engine, the maximum output is increased to 895kW  (1217PS), the largest in its class.
2)  Body dimension change
A body shape best  matching large excavators as  more large excavators are dumping onto dump trucks recently, aside from large loaders.
3)  Two-speed selection reverse gears
The number of backward gear shifts has changed to two shifts (RH/RL), allowing the selection of a  more suitable shift for particular field work. The two shifts also incorporate an automatic lock-up function permitting continuous backward uphill travel without worrying about overheating. (Fig. 1)



fig1



3.2 Low fuel consumption
1)  Variable horse power control (VHPC)

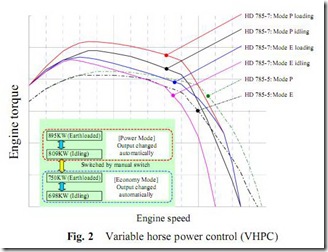

Variable horse power control (VHPC:  Variable Horse Power Control) has newly been employed to achieve both considerable engine output and low fuel consumption at the same time. In addition to the existing mode change system of changing the mode to Mode P or Mode E by operating  a switch on a panel at the operator seat, depending on the travel conditions and required work rate, this system  auto matically changes the engine power to high output when earth is being loaded onto and to low output when detecting the loading of earth or idling by the vehicle itself, which has significantly reduced fuel consumption. (Fig. 2)



fig 2



2) Optimum shift control
Fuel economy is improved by shifting up early to control the engine speed when the accelerator pedal is touched only lightly and the vehicle is not accelerated fast. Conversely, when acceleration is necessary and the accelerator pedal is stepped on, shifting up of the engine to the maximum output is prevented and the power of the engine is  fully demonstrated.
3)  Reduction of loss horsepower
Loss horsepower is reduced by making transmission the main relief pressure variable, via the transmission lubricating oil quantity control and by making the torque converter charge pump and transmission control pump independent. (Fig. 3)



fig 3


Incorporating the foregoing functions, fuel consumption could be drastically reduced compared with a existing model. (Table 2)



table 2


3.3  Enhanced safety and comfortability
1) New cab
(1) Large cab integrating ROPS and FOPS A built-in cab integrating ROPS and FOPS is adopted. The cab ruggedness is reinforced by applying the ROPS  structure to the cab pillars, thereby enhancing operator safety.
(2) Low noise and vibration
The airtightness of the cab is enhanced to prevent sound intrusion. Low engine speed and hybrid cooling fan  reduce engine noise, drastically  reducing noise inside the cabin. The cab  mount is a viscous  mount that excels in dampness, providing a quiet dwelling space with less vibration.

2)  Enhanced brake reliability
(1) Fully hydraulic control 4-wheel wet type brakes All the brakes, including the  parking brake,  are wet type brakes and operated by fully hydraulic brake control. Because dry brakes are not used, the braking system is maintenance free and braking can be applied without worrying about brake pad wear, greatly enhancing reliability. Both the service and  retarder brakes feature  a brake feeling with reduced time lag and an effective response.
(2) 4-wheel retarder
4-wheel retarder (AP-FOUR [four-wheel oil-cooled multi-disc retarder with anti-pitching function]) that applies braking to all front and rear wheels is used. The load onto the tires is equalized by applying part of the braking  force to the  front wheels, instead of braking only the rear wheels, reducing locking of the rear wheels that causes unstable behavior and enhancing safety. The  retarder ability is demonstrated more effectively. (Fig. 4)



fig 4


(3) Electric dump control
Dump control is changed to electric control. A sensor detects the body attaching time immediately before the body attaches and the body descending  speed is controlled by hydraulic control, greatly reducing the body attaching shock.



3.4  Compliance with environmental conditions and regulations
The dump truck is installed with the  KOMATSU SAA12V140E-3 engine meeting both US EPA Tier2 emission regulation and EU exhausted gas regulation Stage2.


3.5 Enhanced maintainability
1)  New monitoring system and failure diagnosis function
Various meters and caution lamps are installed on the instrument panel for an understanding of the vehicle condition at a glance. In case of any trouble with the vehicle, an alarm lamp cautioning the trouble will light up (flash), displaying the nature of the trouble and troubleshooting method in code No. and in a message on the character display. By taking action before a trouble develops into a  major failure, the machine downtime can be shortened and repair costs reduced.

2)  VHMS equipped as standard provision
Real-time, centralized management of operational data of the major components is now available as a  standard  specification. Continual  monitoring of operational data enables actions to be taken for preventive maintenance against vehicle failures, thereby ensuring correct vehicle  maintenance and reducing the vehicle downtime.
3)  Disc wheel (Flange type rim)
A change from the wedge type to the disc type ( flange type) for the fixing of the wheels facilitates wheel mounting and dismounting. (Photo 2)



flange type rim


4)  Enhanced durability of the suspension system
The durability of the suspension system has been enhanced by reducing the bearing stress onto bushing surfaces via an increase in the rod diameter, by enhancing the heat resistance of the rod packings and buffer rings and by improving the sealed oil.



4. Market Introduction
        The dump trucks that  started  operation in Indonesia other  markets  are working smoothly.  “High power” “high fuel economy” are especially acclaimed by users.



5. Conclusion

        Achieving engine output that  is largest for the class and low fuel consumption, as well as 4-wheel wet type brakes of the full hydraulic control type, proved to be the most difficult tasks in the development process. However, improvement could be incorporated in  major components, including the body, engine, transmission and axle, accomplishing the development aims.



Sumber : Komatsu Tech. Report HD785-7
